6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

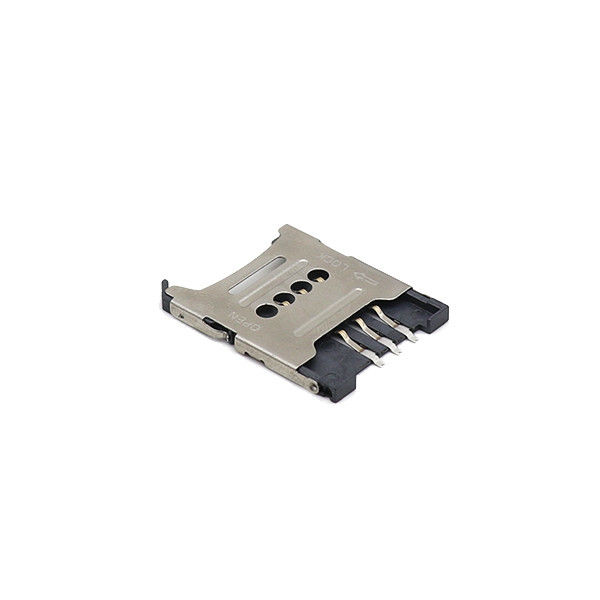

6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS

6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS
6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS
6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS 6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS 6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS

Large Image :  6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Sim card connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS

Description
Type: Sim Card Connector Housing: Hi-temperature Thermoplastic Plastics
Shell: Stainless Steel Contact Resistance: 50mohms MAX
Withstanding Voltage: 350V/1min AC Insertion Force: 20gf/pin Min
High Light:

6p SIM Card Sockets

,

ROHS SIM Card Sockets

,

6p micro sim card holder

SIM card connector 6pin flip type Card Slot Holder Connector Mobile Phone Card Slot Socket





The SIM (User Identity Module) is a small smart card designed to store user identity, security, authentication and personal information for use in mobile network terminals. In order to make power and electrical signals "uninterrupted", "unchangeable" and "undecayed", contact reliability technology is particularly important. MSTCONN offers a wide range of types and sizes, including Nano (4FF SIM) cards, Micro SIM(3FF SIM) cards, Micro SIM(2FF SIM) cards and combination SIM cards, with outstanding technical capabilities and excellent reliability and durability. The MSTCONN SIM card holder also has an operating temperature range of -40 to +85 ° C.



Details



1. XTK has many types card connectors: CF/SD/TF/SIM/XD/MICRO SD card connector.
2. All parts and accessories are made of environmentally friendly materials, in line with the latest RoHS,REACH requirements.
3. The solder joint fitting flatness is controlled at 0.1mm, and the contact tolerance is controlled at 0.02mm.



Specifications



Mounting Type SMT
No. Of Positions 6p
Rated current 1.0A AC
Rated voltage 30V
Contact Resistance 50m/pin ohms MAX
Insulation Resistance 1000mohms min
Insertion Force 20gf/pin Min
Operation Temperature -30℃ to +85℃
Withstanding Voltage 350V/1min AC
Housing LCP
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Ejector TYpe Push-push;push-pull,Hinge;Tray type



6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS 0



Drawing

6p SIM Card Sockets Flip Type Micro Sim Card Holder Connector ROHS 1



Product Feature

Providing compact memory card sockets with a height of no more than 1.28mm, saving PCB space. As products become smaller, a minor external shock could cause short-circuit or misalignment. The hinge feature keeps the card stable, protecting it from external shocks and/vibrations. Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.



Why choosing us


1. Almost 15 years of R&D and manufacturing experience in the connector industry.
2. A variety of channels to satisfy various demands including industrial product.
3. Sufficient stock for your urgent demand.
4. Professional high quality service to solve your confusion.
5. Timely reply within 2 hours during working time.





Who we are

1. Shenzhen XIETAIKANG is a reliable and professional connector supplier.

2. We are with great passion of it.

3. We know, we can gain what we seed.

4. We can surpass our competitors by achieving it.

5. Our customers will trust us and make long-term cooperation with us.

6. Enterprise spirit : Honest &Trustworthy Enterprising Win& win.



FAQ



Q1: Are you trading company or manufacturer ?

A: We are manufacturer.



Q2: How To Order?

A: 1,please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.



Q3: When can we get the reply?

A: Any inquiries will be replied within 24 hours.



Q4: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q5: What’s the delivery time?

A: It usually takes about 7-14 days to produce the products.



Q6: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.



Q7: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service



Q8: How to contact us.

A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.



If you can't find the products from our web, pls send an inquiry to us,even if we can't make ,we can help you to find the same product with good quality and low price.
