Product Details:
|
| Pitch: | 0.5mm | No. Of Positions: | 4-50pin |
|---|---|---|---|
| Mounting Type: | Vertical / ZIF | Type: | Slide Lock |
| Withstanding Voltage: | 250V AC,1min | Lead Time: | 7-10 Working Days |
| High Light: | 50Pin FFC FPC Connector,SGS FFC FPC Connector,1.0mm ffc cable connector |
||

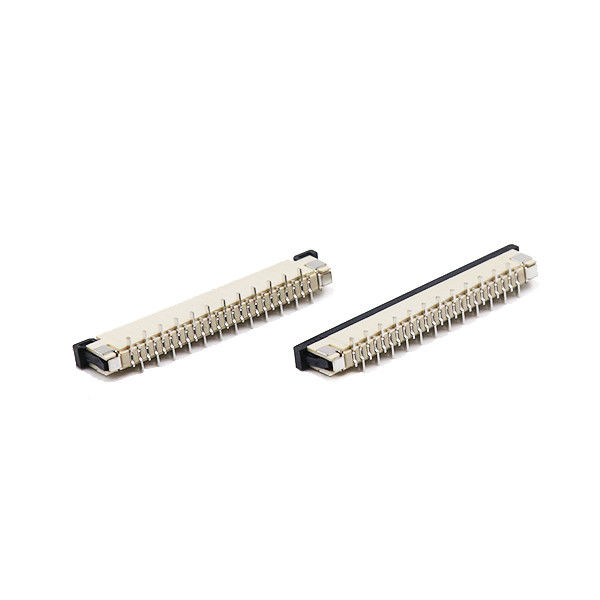

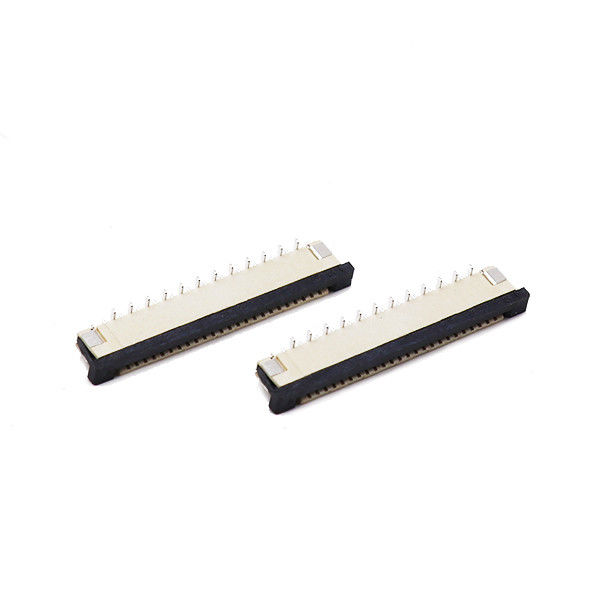

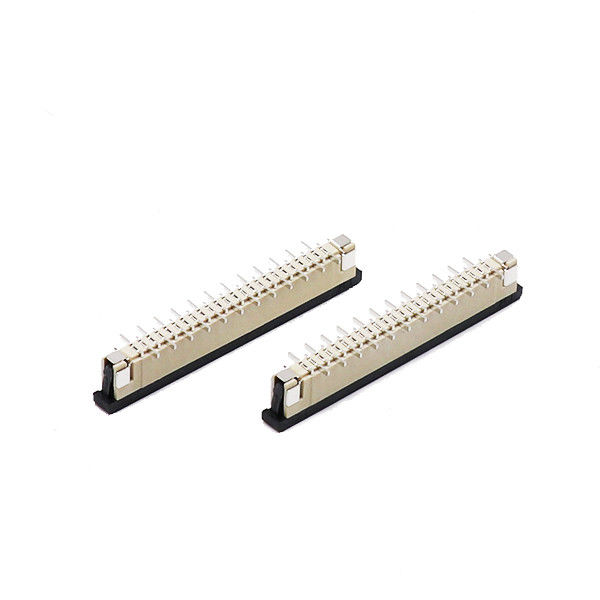

Xietaikang`s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.
Description
This Series are suitable for applications in which high contact reliability is required under harsh environments regarding vibration, temperature, humidity, etc. Applications include in-vehicle units such as car navigation system units, GPS units, and car audio products, medical or industrial equipment, and OA or AV equipment. FPCs/FFCs with tabs prevent improper mating, enable secure connection, and increase the force to retain FPCs/FFCs.
Specifications
| Pitch | 0.5mm |
| Height | 1.0mm |
| Mounting Type | Vertical / ZIF |
| Contact Location | Single-sided contact |
| Type | Slide lock |
| Current Rating | 0.5A/Pin Max |
| Voltage Rating | 50V AC/DC MAX |
| Withstanding Voltage | 250V AC,1min |
| Cover Material | LCP UL94V-0 black |
| Housing | LCP UL94V-0 Natural |
| Terminal/Contact | Copper alloy |
| Plating | Tin-plating |
| Operation Temperature | -40℃ to +85℃ |
| Lead Time | 7-10 working Days |
Typical Applications
Printers / Copiers,
Automotive Equipment,
Industrial Equipment,
Medical Equipment etc.
FAQ
1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.
