Product Details:
|
| Pitch: | 0.5mm | Height: | 2.0mm ,3.0mm |
|---|---|---|---|
| Contact Location: | Single-sided Contact | Current Rating: | 0.5A/Pin Max |
| Voltage Rating: | 50V AC/DC MAX | Pin: | 4-60pin |
| High Light: | 0.5mm 45 Pin FPC Connector,Horizontal 45 Pin FPC Connector,3.0mm Flexible Printed Circuit Connector |
||

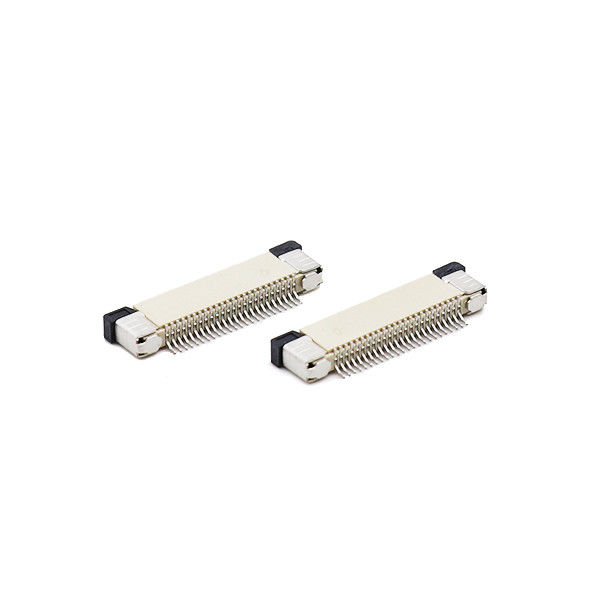

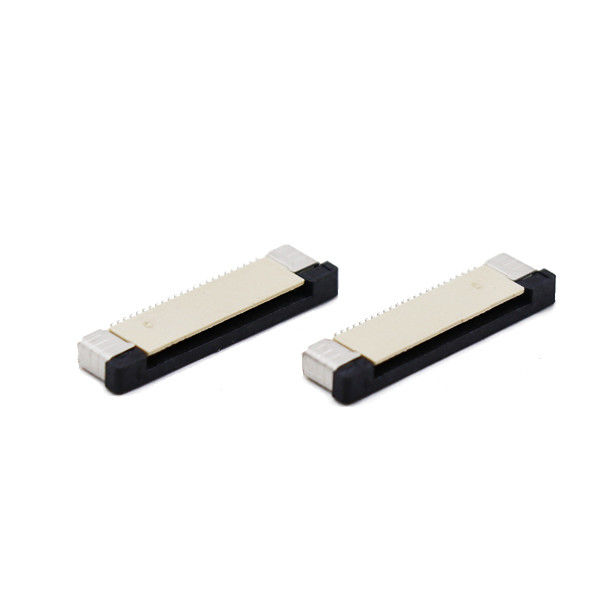

slider lock 0.5mm FFC FPC connector H=2.0 ,3.0 horizontal type
Description
This series is ZIF, SMT type FPC/FFC Connectors with slide locks which enable secure connection with flexible cables. These low profile connectors feature a total height of 2.0mm,with bottom contact or top contact.can provide 3.0mm height.
Specifications
| Pitch | 0.5mm | |
| Height | 2.0mm | 4-60pin available |
| 3.0mm | 36-40-45-50-54-55-60pin available | |
| Mounting Type | SMT/ZIF | |
| Contact Location | Single-sided contact | |
| Type | Slide lock | |
| Current Rating | 0.5A/Pin Max | |
| Voltage Rating | 50V AC/DC MAX | |
| Withstanding Voltage | 250V AC,1min | |
| Cover Material | LCP UL94V-0 black | |
| Housing | LCP UL94V-0 Natural | |
| Terminal/Contact | Copper alloy | |
| Plating | Tin-plating / Gold-plating | |
| Operation Temperature | -40℃ to +85℃ | |
| Lead Time | 7-10 working Days | |
Typical Applications
Tablet PCs / Notebook PCs,
DSCs / DVCs,
Audio Players,
FPD / LCD TVs,
Printers / Copiers,
Medical Equipment,etc.
