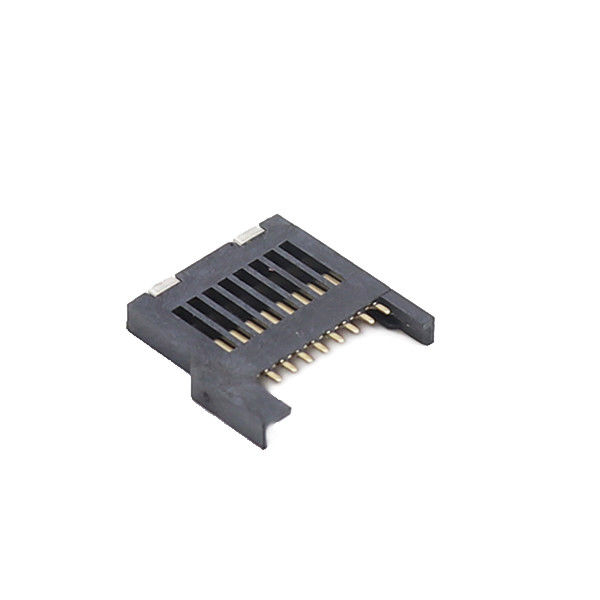

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket
Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket

Large Image :  Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: TF card connector
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket

Description
No. Of Positions: 8p Mounting  Type: SMT
Rated Current: 0.5A Rated Voltage: 30V
Contact Resistance: 50m Ohms MAX Operation Temperature: -40℃ To +85℃
High Light:

Micro TF Card Connector

,

8Pin TF Card Connector

,

8Pin Micro SD Socket

Micro SD / TF card connector 8pin full plastic holder Motorized card reader





Category: Memory Card Sockets

Type: Micro SD

Ejector Type:Push-Push; Push-Pull; Hinge; Tray; Pin-Eject



Customers require easy card insertion and extraction for portable devices. The push-push ejection system utilizes spring elasticity, and the push-pull system utilizes simple manual ejection, simplifying card insertion and ejection for portable devices.

There is a market demand for a small volume of multi-product supply due to card utility in various applications. Examples include drones, portable applications and IoT. XTK offers a wide range of memory card products to satisfy our customers’ needs.



Specifications



Mounting Type SMT
No. Of Positions 8p
Rated current 0.5A
Rated voltage 30V
Contact Resistance 50m ohms MAX
Insulation Resistance 100mohms min 100V DC
Operation Temperature -40℃ to +85℃
Storage Temperature -10℃ to +85℃
Withstanding Voltage 100V AC
Housing LCP,UL94V-0 black
Terminal copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles MIn
Lead Time 7-10 working Days
Ejector Type Push-push;push-pull,Hinge,Tray type

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket 0

Full Plastic Holder TF Card Connector 8 Pin Micro SD Socket 1



Considering about luminescence property of LED device,this LEB connector is designed as low profile type connector for

LED lighting.and achieves the space saving. The hrizontal connection between PCBs enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel use for the connector.Fork type contact that

has a high contact pressure (receptacle side) and enough mating stroke provide the stable contact performance even if the PCB expands and contracts due to heat.



Our Services
1. More than 15 years experience in Connector industry, please provide drawing or send sample to us, then we will send you our drawing or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
6. All your needed certificates we can provide;
7. ROHS compliant;
8. Small order are available.
