1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

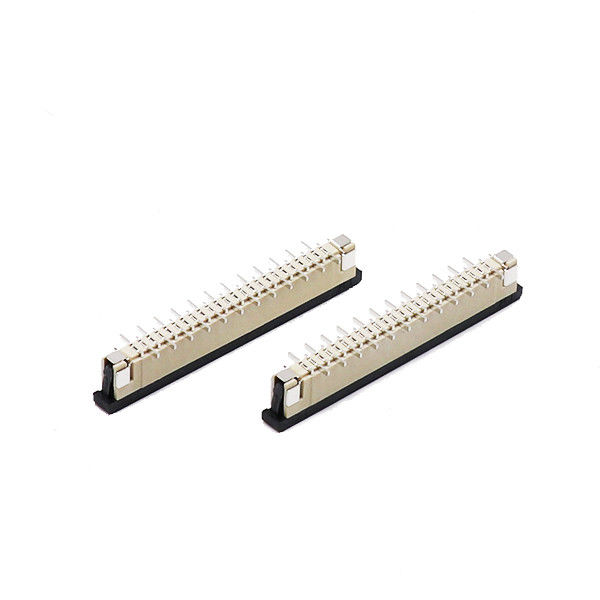

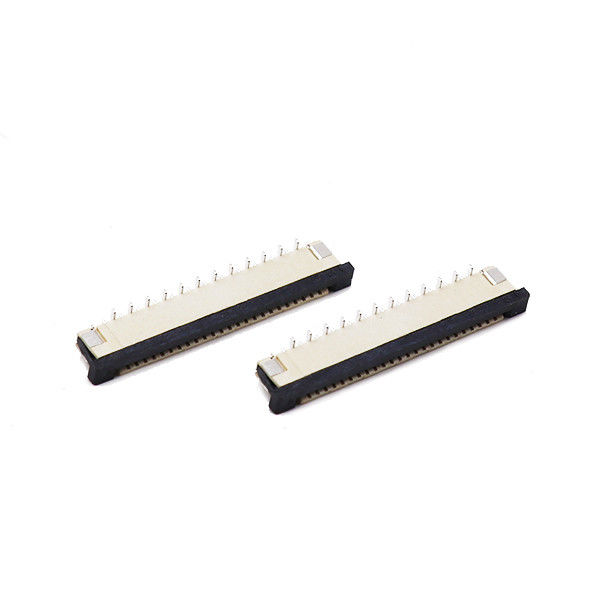

1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector

1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector
1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector 1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector

Large Image :  1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: FFC FPC connector
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector

Description
Pitch: 1.0mm No. Of Positions: 4-50pin
Mounting Type: Vertical / ZIF Type: Slide Lock
Operation Temperature: -40℃ To +85℃ Lead Time: 7-10 Working Days
High Light:

1.0mm 32 Pin FPC Connector

,

Vertical 32 Pin FPC Connector

,

1.0mm FFC FPC Cable Connector

1.0mm pitch FFC FPC connector vertical type





This Series are 1.0mm pitch, ZIF, vertical FFC/FPC Connectors, which are available in SMT types. The SMT type can be packed with tape and reel for automatic mounting.

Xietaikang’s FFC(Flexible Flat Cable) / FPC(Flexible Printed Circuit) connectors with wide variety of product line-up offer the best combination of signal reliability, compactness, wide circuit size range and cable style choices of any similar version in the market.

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.



Description

Product Name
FFC FPC Connector
Brand Name
XTK
Voltage Rating
50 VAC
Withstand Voltage
500V /AC
Insulation Resistance
500m ohm Min
Temperature Range
-40℃ To +105℃
Pitch
0.3mm/0.5mm/0.8mm/1.0mm/1.25mm/2.54mm
Type
DIP/Angle/SMT , Single/Double Row, Top/Bottom Contact
Sample
We can supply free sample

1.0mm Pitch 32 Pin FPC Connector Vertical Type FFC FPC Cable Connector 0



Product Application

FPC connector in the process of disassembly, in the opening of the connector lock cover, should pay attention to the operation strength can not be too large, so as to cause the deformation and damage to the connector. Second, excessive exertion is also a problem that can easily lead to deformation or break of terminals in the connector lock cover.



Advantage

1. Specializes in manufacturing connector more than 18 year as well as export the relevant component more than 10 years
2. UL-marked products conform to REACH and ROHS regulations
3. Rich selection of connector,terminal,PIN,female header, automotive terminals and more
4. ISO 9001:2008-certified factory quipped with automated assembly lines
5. Up to 40 million units turned out each month
6. The KR BRAND can replace JST,Molex,YEONHO,Tyco,AMP,KET,JWT,JMT, Cvilux,GTK ect.)
7. R&D team updates every month with 20 new items
8. Sample take up to 3 days,but can be finished with one day in urgent cases
9. Specialized in providing connector solutions for customers and providing customized services.
10. Custom orders welcome





FAQ

1. Ask: What information do you need if we want to custom wire harness or cable assembly?
Answer: Please send your drawing or sample to us.
2. Ask: If we don't have drawing or sample, just a picture, what information do you need?
Answer: If so , you need to tell us the model about connector and cable UL number with AWG,and the length of cable, last how to contact each wire to connector.
3. Ask: When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.
4. Ask: What's your delivery time?
Answer: Our normal delivery time is 10-15 days, if urgent, it will be dealt with urgently.
5. Ask: How we can trust your quality?
Answer: All material in RoHS, Reach standard, 100% test before delivery.
6. Ask: What's your price?
Answer: Our price is base on different market and can be negotiated.
7. Ask: What's your after-sale service?
Answer: We provide technique support for you and help you improve your design or drawing, also can help you solve your and your customer problem.
