Product Details:
|
| Product Family: | Memory Card Connectors | Type: | Push |
|---|---|---|---|
| Housing: | Thermoplastic , UL94- V0 | Current Rating: | 1.0A |
| Application: | PCB | Service: | OEM/ODM |
| High Light: | SMT micro sd card connector,ROHS 0.8mm micro sd card connector,0.8mm memory card socket |
||

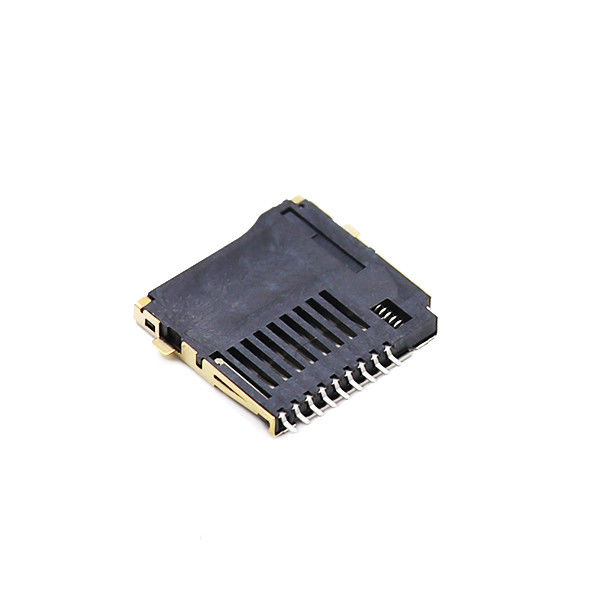

Push type T Flash Micro SD Memory Card Reader Connector Mid-mount 0.8 SMT
Product Description
| Mounting Type | SMT / mid-mount |
| No. Of Positions | 9p |
| Current Rating | 0.5A |
| operating voltage | 10V AC(RMS)/DC |
| Contact Resistance | 20m ohms |
| Insulation Resistance | 100mohms min |
| Operation Temperature | -25℃ to +85℃ |
| Storage Temperature | -10℃ to +85℃ |
| Voltage Rating | 50V |
| Material of main body | LCP,UL94V-0 |
| Contact | copper alloy |
| Withstand Voltage | 500V |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 10,000 Cycles |
| Lead Time | 7-10 working Days |
| Ejector Type | Push-push;push-pull,Hinge,Tray type |
Drawing
Feature
Connector group that includes connectors for standard PCMCIA for PCs, push-push type SD,Micro SD and SIM connectors.
Description
This series are Memory Card Connectors for XQDTM cards. As these products are connectors for consumer equipment such as DSCs (Digital Still Cameras) and DVCs (Digital Video Cameras), their card operation features a push-push mechanism by adopting the spring-ejection structure, thus enabling users to easily insert and eject the cards. In addition, the connectors are made user friendly with an enhanced “click” feeling, and a guiding structure which prevents incorrect card insertion of the cards.
Typical Application
With Storage Features:
Camera
Digital Audio
Tablet PCs
Travel Recorder
Tablet PCs / Notebook PCs
DSCs / DVCs.
Main export markets
Asia Australasia
Eastern Europe Mid East/Africa
North America Western Europe
Central/South America
Primary Competitive Advantages
Small orders accepted
Factory direct export
With 20 years of professional production experience as a manufacturer of precision connectors
Free samples is available
Prompt delivery
Green product
Strong researching and developing team
Experienced staff
ISO9001,ROHS
